Lab Testing

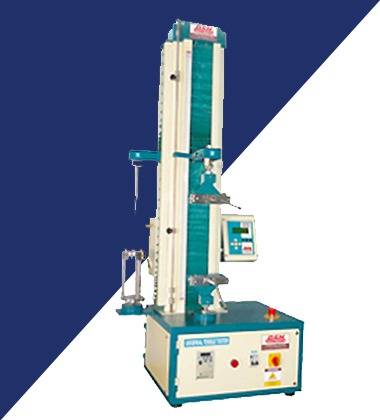

Combine Tensile Tesing Machine

High grade steel gives unmatched performance,accuracy and precision. high axial stiffness-reduces machine compliance while increasing speed and displacement accuracy when specimen under load.

max Load,Max Elongation, Yield force, Yield Elongation, Break force Break elongation, GPD, Denier other customized at least two direct result value facility in corporate with the controlling unit.

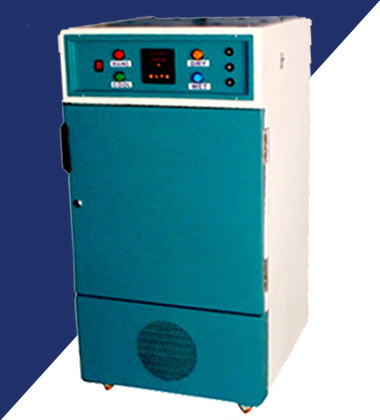

Humidity Chamber 18"x 14"x 22" Inside SS Out Side Ms With Power Coating

Machine is used to conditioning of the samples at specified temperature as well as specified humidity.

Humidity range 50% to 95%

Temperature range 20 °c to 45 °c.

Suitable standards are IS, ASTM or other equivalent standards.

Machine suitable for Pipes, Woven fabrics, Woods etc.

Humidity and temperature both digital.

Machine having a different sizes are available according to application.

Machine having a facility of boiler and condensation.

Wheel base machine for easy movement.

Full length of glass doors for inspection of samples.

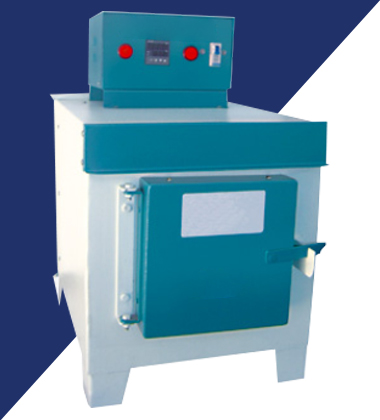

Muffle Furnace For Ash Content Tester Size: 4"x 4"x 9"

Machine supplied with PID based temperature controller.

Two sizes of furnace are available 4"x4"x9" or 6"x6"x12".

Temperature working range up to 1000 °c. 1200 °c or 1400 °c also possible on request.

Fire bricks insulation is used and front opening door with cera-wool insulation material for avoid heat losses.

DSH supply glass ware and accessories as per customs requirements Power supply single phase 230 volts table top model.

Muffle Furnace For Ash Content Tester Size: 4"x 4"x 9"

Machine supplied with PID based temperature controller.

Two sizes of furnace are available 4"x4"x9" or 6"x6"x12".

Temperature working range up to 1000 °c. 1200 °c or 1400 °c also possible on request.

Fire bricks insulation is used and front opening door with cera-wool insulation material for avoid heat losses.

DSH supply glass ware and accessories as per customs requirements Power supply single phase 230 volts table top model.

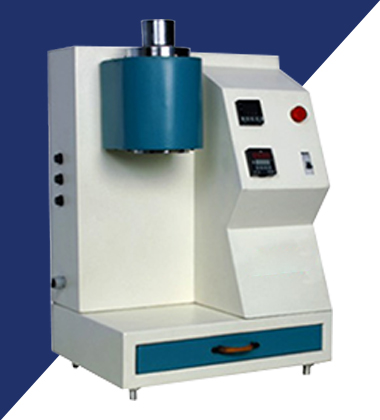

MELT FLOW INDEXER

Machine suitable as per IS:4984,ASTM D 1238 , ISO or other equivalent standard.

Machine having a temperature controller and timer facility.

Machine supplied with standard tool kit and test required loads.

Additional loads are also providing as per customer's request.

Machine having maximum temperature range up to 400 °c.

Temperature accuracy ±.0.5 °c or better.

Highly polished barrel, die and other accessories for better accuracy and performance.

Power supply: single phase with earth, table top model

Note: customer required 0.1 mg accuracy weighing balance at your end.
